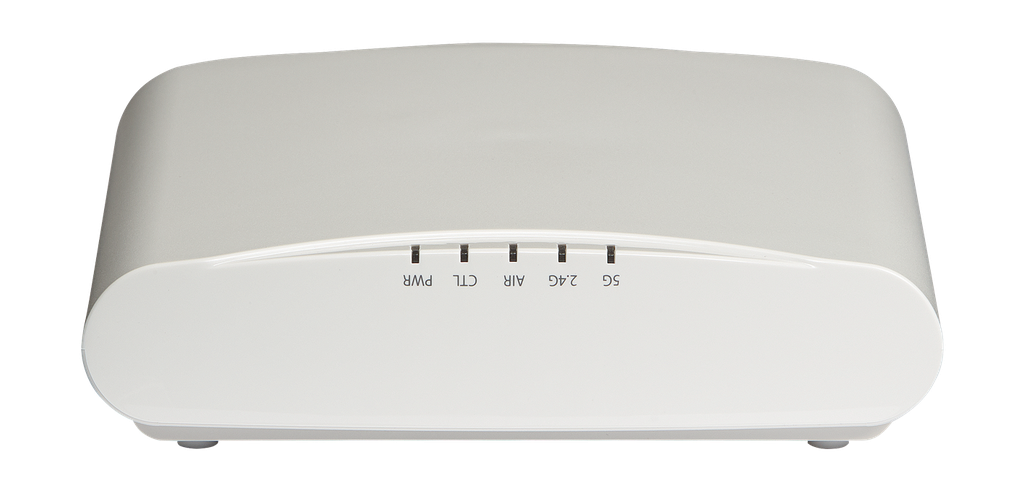

Wifi Ruckus Wireless R610 901-R610-WW00
Ruckus Wireless R610 sử dụng kỹ thuật điều chế trải phổ băng tần 2.4/5Ghz (901-R610-WW00)
Ruckus 901-R610-WW00 wifi router is designed based on today's latest wifi standard - 802.11ac Wave 2, providing wifi speed up to 1300 Mbps for unlimited wifi experience.
The Ruckus 901-R610-WW00 wireless router extends coverage by using omnidirectional BeamFlex+ antennas mounted inside the AP, while allowing the R610 to automatically select combinations of these antennas ( more than 512 combinations of these 4 antennas) to establish the best connection for the devices. Wifi Ruckus R610 supports 3 spatial streams along with SU-MIMO and MU-MIMO technology to help Ruckus wireless 901-R610-WW00 efficiently manage up to 512 Clients on 1 AP, 16 SSIDs on 1 AP while increasing coverage coverage and improve wifi performance.
Specifications Ruckus 901-R610-WW00
| WI-FI | |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates | • 802.11ac: 6.5 to 1,300Mbps (MCS0 to MCS9, NSS = 1 to 3 for VHT20/40/80) • 802.11n: 6.5 Mbps to 450Mbps (MCS0 to MCS23) • 802.11a/g: 54, 48, 36, 24, 18, 12, 9 , 6Mbps • 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | • 2.4GHz: 1-13 • 5GHz: 36-64, 100-144, 149-165 |
| MIMO | • 3x3 SU-MIMO • 3x3 MU-MIMO |
| Spatial Streams | • 3 SU-MIMO • 3 MU-MIMO |
| Channelization | 20, 40, 80, 160 MHz |
| Security | • WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK • WIPS/WIDS |
| Other Wi-Fi Features | • WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v • Hotspot • Hotspot 2.0 • Captive Portal • WISPr |
| RF | |
| Antenna Type | • BeamFlex+ adaptive antennas with polarization diversity • Adaptive antenna that provides up to 512 unique antenna patterns by band |
| Antenna Gain (max) | • 2.4GHz: 1dBi • 5GHz: 3dBi |
| Peak Transmit Power (aggregate across MIMO chains) | • 2.4GHz: 27dBm • 5GHz: 25dBm |
| Minimum Receive Sensitivity | -100dBm |
| Frequency Bands | • ISM 2.4-2.484GHz • U-NII-1 5.15-5.25GHz • U-NII-2A 5.25-5.35GHz • U-NII-2C 5.47-5.725GHz • U-NII-3 5.725-5.85GHz |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | • 2.4GHz: 600Mbps • 5GHz: 1300Mbps |
| Client Capacity | Up to 512 clients per AP |
| SSID | Up to 16 per AP |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | • BeamFlex+ • Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management | • ChannelFly • Background Scan Based |
| Client Density Management | • Adaptive Band Balancing • Client Load Balancing • Airtime Fairness • Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | • QoS-based scheduling • Directed Multicast • L2/L3/L4 ACLs |
| Mobility | SmartRoam |
| Diagnostic Tools | • Spectrum Analysis • SpeedFlex |
| NETWORKING | |
| Controller Platform Support | • SmartZone • ZoneDirector • Cloud Wi-Fi • Unleashed • Standalone |
| Mesh | SmartMesh wireless meshing technology, Self-healing Mesh |
| IP | IPv4, IPv6 |
| VLAN | • 802.1Q (1 per BSSID or dynamic per use based on RADIUS) • VLAN Pooling • Port-based |
| 802.1x | Authenticator & Supplicant |
| Tunnel | L2TP, GRE, Soft-GRE |
| Policy Management Tools | • Application Recognition and Control • Access Control Lists • Device Fingerprinting • Rate Limiting |
| PHYSICAL INTERFACES | |
| Ethernet | • 2 x 1GbE ports, RJ-45, • Link Aggregation (LACP) |
| USB | 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | • 20.1(L), 19.5(W), 5.1 (H)cm • 7.9 (L), 7.68 (W), 2.00 (H)in |
| Weight | 578g (1.3lb) |
| Mounting | • Wall, Acoustic ceiling, Desk • Secure Bracket (sold separately) |
| Physical Security | • Hidden latching mechanism • Kensington Lock Hole • T-bar Torx |
| Operating Temperature | 0°C (32°F) - 40°C (104°F) |
| Operating Humidity | Up to 95%, non-condensing |
| CERTIFICATIONS AND COMPLIANCE | |
| Wi-Fi Alliance | • Wi-Fi CERTIFIED a, b, g, n, ac • Passpoint • Vantage |
| Standards Compliance | • EN 60950-1 Safety • EN 60601-1-2 Medical • EN 61000-4-2/3/5 Immunity • EN 50121-1 Railway EMC • EN 50121-4 Railway Immunity • IEC 61373 Railway Shock & Vibration • EN 62311 Human Safety/RF Exposure • UL 2043 Plenum • WEEE & RoHS • ISTA 2A Transportation |
Ruckus 901-R610-WW00 . Power Consumption
| Power Supply | Operating Characteristics | Max Power Consumption |
| DC Input 12V DC, 2.0A | - | 19.1W |
| 802.3af | • Limits 2.4GHz to 2x3 (2-chain transmit at 21dBm aggregate power, 3-chain receive) • Turns off USB port • Turns off 1 Ethernet port | 18.8W |
Các tùy chọn cho Ruckus 901-R610-WW00
| SKU | Description |
| 9 | PoE injector (90 – 264 VAC 47 - 63 Hz) |
| 902-1169-XX00 | AC Power supply (264 VAC 47 - 63 Hz) |
| 902-0120-0000 | Secure mounting bracket for walls, junction boxes and cable ties |
| 902-0195-0000 | Spare, T-bar ceiling mount kit for R610 and other APs for mounting to flush frame ceiling |
