Wifi Cisco AIR-AP1832I-S-K9

    0 ₫ 0 ₫ 0.0 VND

    0 ₫

    This combination does not exist.

    Add to Cart

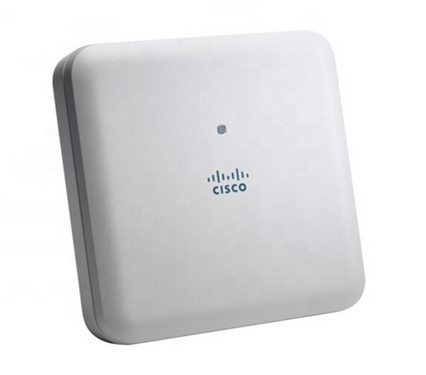

    Cisco Aironet 1830 Series with Mobility Expre, S Regulatory Domain
    Supplier: Cybersky
    Condition: 100% New
    Warranty 12 months
    Nationwide Delivery
    Sufficient CO, CQ
    Contact for better price

    QUICK SPECIFICATIONS:


    MODEL

    AIR-AP1832I-S-K9

    Product Description

    Cisco AIR-AP1832I-S-K9 802.11ac Access Point Wave 2; 3x3:2SS; Internal-Ant,S Regulatory Domain

    Form Factor

    Ceiling Mountable/ Wall Mountable

    Interfaces

    1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
    1 x  console port (RJ-45)
    1 x USB 2.0

    Software

    ◦ Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points
    ◦ Cisco Mobility Express

    Supported WLAN controllers

    ◦ Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Catalyst 9800 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller
    ◦ Cisco Mobility Express

    Authentication and security

     Security:
    ◦ 802.11i, Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
    ◦ 802.1X
    ◦ Advanced Encryption Standard (AES)
    Extensible Authentication Protocol (EAP) types:
    ◦ EAP-Transport Layer Security (TLS)
    ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
    ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2
    ◦ EAP-Flexible Authentication via Secure Tunneling (FAST)
    ◦ PEAP v1 or EAP-Generic Token Card (GTC)
    ◦ EAP-Subscriber Identity Module (SIM)

    802.11n version
    2.0 (and related)
    capabilities

    3x3 MIMO with two spatial streams
    Maximal Ratio Combining (MRC)
    20- and 40-MHz channels
    PHY data rates up to 300 Mbps (40 MHz with 5 GHz)
    Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
    802.11 Dynamic Frequency Selection (DFS)
    Cyclic Shift Diversity (CSD) support

    802.11ac Wave 1 and 2 capabilities

     2x2 single-user/multiuser MIMO with two spatial streams
     Maximal Ratio Combining (MRC)
     20-, 40- and 80-MHz channels
     PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
     Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
     802.11 Dynamic Frequency Selection (DFS)
     Cyclic Shift Diversity (CSD) support

    Environmental

    Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
    Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
    Operating temperature: 32° to 104°F (0° to 40°C)
    Operating humidity: 10% to 90% (noncondensing)
    Operating altitude test: 40˚C, 9843 ft

    RAM

    1024 MB DRAM

    Flash Memory

    256 MB

    Dimensions (W x L x H)

    8.3 x 8.3 x 2 inch

    Weight

    930 g

    Integrated antennas

    2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
    5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

    Power Options

    Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
     802.3af/at Ethernet switch
     Enhanced PoE
    Cisco local power supply, AIR-PWR-C=
    *Note: If 802.3af PoE is the source of power, the USB port is disabled

    Warranty -Service

    12 Months
