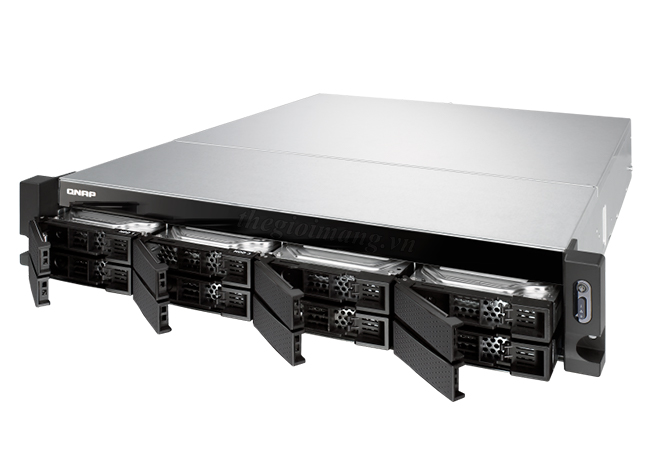

Storage device 8 tray NAS TS-877XU-RP-3600-8G-EU
CPU AMD Ryzen 5 3600 6-core 3.6 GHz processor, Turbo Core 4.2 GHz
System Memory 8 GB UDIMM DDR4 (2 x 4GB)
Drive Bays 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
10GbE Port 2 x 10GbE SFP+ SmartNIC port
| NAS | |
| CPU | AMD Ryzen 5 3600 6-core 3.6 GHz processor, Turbo Core 4.2 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 8 GB UDIMM DDR4 (2 x 4GB) |
| Maximum Memory | 64 GB (4 x 16 GB) |
| Memory Slot | 4 x Long-DIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch/2.5-inch SATA HDD ,2.5-inch SATA SSD |
| Drives Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| 1GbE Port (RJ45) | 2 |
| 10GbE Port | 2 x 10GbE SFP+ SmartNIC port |
| Jumbo Frame | Yes |
| PCIe Slots | 4, Slot 1: PCIe Gen 3 x4, Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4*, Slot 3: PCIe Gen 3 x4, Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps, 1 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-12, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.3 × 482 × 562 mm |
| Power Supply Unit | 2 x 300W, 100-240V |
| Weight (Net) | 13.31 kg |
| Power Consumption/Operating Mode | 86.06 W |
| Fan | 2 x 70mm, 12VDC, Smart fan |
| Sound Level | 37.2 db(A) |
